Product Summary

The ADUM3201ARZ is a dual-channel, digital isolator. It is based on the Analog Devices, Inc. iCoupler technology. Combining high speed CMOS and monolithic transformer technology,it can provide outstanding performance characteristics superior to alternatives such as optocoupler devices. It is suitable for size-critical multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver isolation and digital field bus isolation.

Parametrics

Absolute maximum ratings: (1)Storage Temperature (TST): -55 to +150℃; (2)Ambient Operating Temperature (TA): -40 to +105℃; (3)Supply Voltages (VDD1, VDD2): -0-5 to +7.0V; (4)Input Voltage (VIA, VIB)1, 2: -0.5 to VDDI + 0.5V; (5)Output Voltage (VOA, VOB): -0.5 to VDDO + 0.5V; (6)Average Output Current, per Pin (IO): -35 to +35mA; (7)Common-Mode Transients (CML, CMH): -100 to +100kV/μs.

Features

Features: (1)Narrow body, RoHS-compliant, 8-lead SOIC; (2)Low power operation; (3)Bidirectional communication; (4)3 V/5 V level translation; (5)High temperature operation: 105℃; (6)High data rate: dc to 25 Mbps (NRZ); (7)Precise timing characteristics; (8)High common-mode transient immunity: >25 kV/μs; (9)Safety and regulatory approvals.

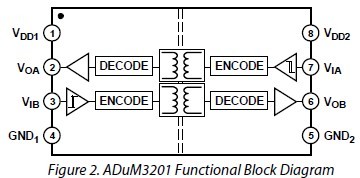

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADUM3201ARZ
ADUM3201ARZ

IC DIGITAL ISOLATOR 2CH 8-SOIC
Data Sheet
0-1: $1.91
1-10: $1.70
10-100: $1.39
100-250: $1.26
250-500: $1.13
500-1000: $0.95
1000-2500: $0.91

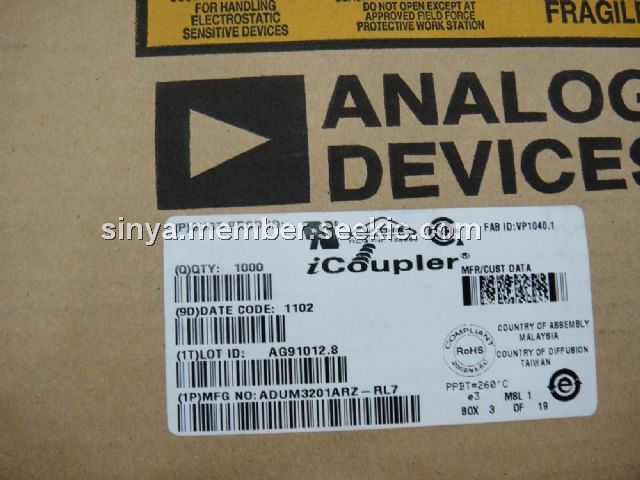

ADUM3201ARZ-RL7
ADUM3201ARZ-RL7

IC DIGITAL ISOLATOR 2CH 8-SOIC
Data Sheet
0-1000: $0.95
